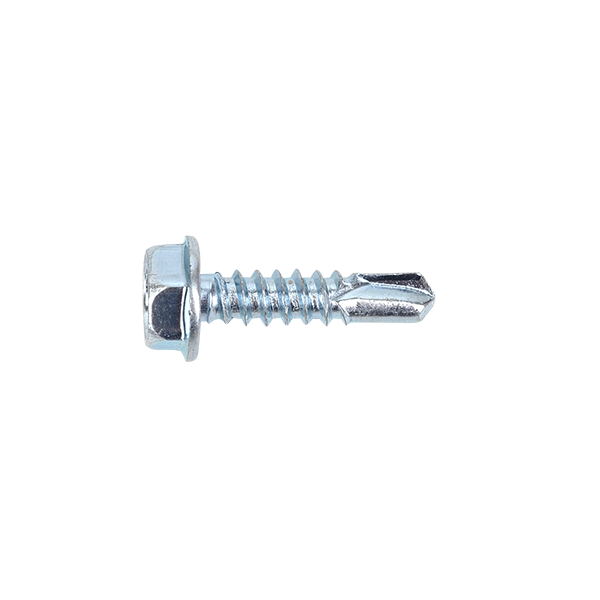

Hex Washer Head Self-Drilling Screw
Specification
Hex Washer Head Self-Drilling Screw
Standard: Din7504-K
Measurements
| Dia. | Length (mm) | Material/Class | Surface Treatment | Drilling Point # |
|---|---|---|---|---|
| 3.5 | 9.5-19 | C1022 Harden or SS A2/A4 | Z.P.L. M.Z.P.L. Decromat Ruspert | 2 |
| 3.9 | 9.5-25 | C1022 Harden or SS A2/A4 | Z.P.L. M.Z.P.L. Decromat Ruspert | 2 |
| 4.2 | 32-50 | C1022 Harden or SS A2/A4 | Z.P.L. M.Z.P.L. Decromat Ruspert | 2 |
| 4.8 | 13-50 | C1022 Harden or SS A2/A4 | Z.P.L. M.Z.P.L. Decromat Ruspert | 3 |
|
|
|
|
|
|
Specification
Hex Washer Head Self-Drilling Screw
Measurements
| Dia. |
Length (inch) |
Material/Class | Surface Treatment |
Drilling Point# |
|---|---|---|---|---|
| #6 | 3/8~3/4 | C1022 Harden or SS A2/A4 | Z.P.L. M.Z.P.L. Decromat Ruspert | 2 |
| #7 | 3/8~1 | C1022 Harden or SS A2/A4 | Z.P.L. M.Z.P.L. Decromat Ruspert | 2 |
| #8 | 1-1/4~2 | C1022 Harden or SS A2/A4 | Z.P.L. M.Z.P.L. Decromat Ruspert | 2 |
| #9 | 1/2~2 | C1022 Harden or SS A2/A4 | Z.P.L. M.Z.P.L. Decromat Ruspert | 3 |
|
|
|
|
|
|
