Break Self-Drilling Screw

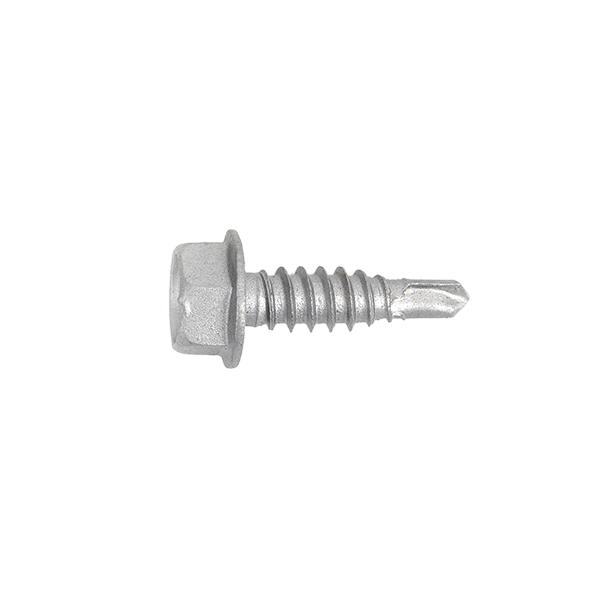

Hex Flange Head Self-Drilling Screw, W/Reduced Drilling Point

Specification

Hex Flange Head Self-Drilling Screw, W/Reduced Drilling Point



 Measurements

Dia. Length (mm) Material/Class Surface Treatment Drilling Point #
4.8 13-75 C1022 Harden or SS A2/A4 Z.P.L. M.Z.P.L. Decromat Ruspert #2
5.5
 19-125
 C1022 Harden or SSA2/A4
 Z.P.L M.Z.P.L. Decromat Ruspert
 #2
Specification

Hex Flange Head Self-Drilling Screw, W/Reduced Drilling Point



 Measurements

Dia.

Length (inch)

Material/Class Surface Treatment

Drilling Point #

#10 1/2"~3" C1022 Harden or SS A2/A4 Z.P.L. M.Z.P.L. Decromat Ruspert #2
#12 3/4"~5" C1022 Harden or SS A2/A4 Z.P.L. M.Z.P.L. Decromat Ruspert #2
